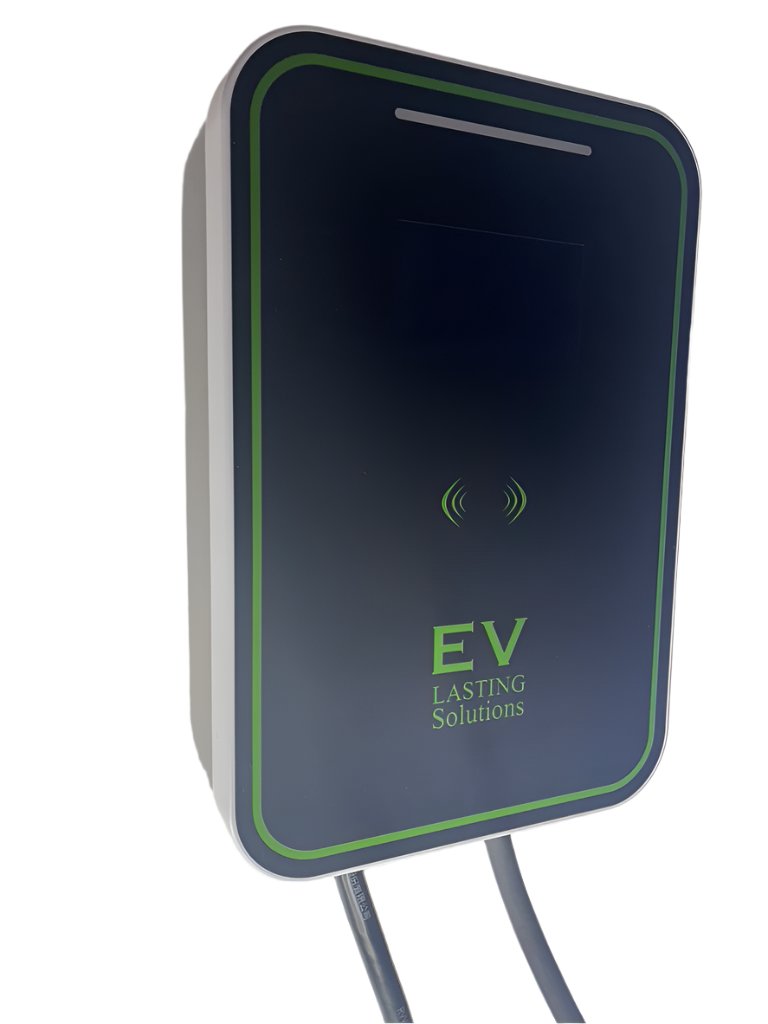

Genesis T (AC Wallbox EV Charger Tethered) with 4.3 inch LCD

Genesis T (AC Wallbox EV Charger Tethered) with 4.3 inch LCD

£399.00 GBP
£644.00 GBP £399.00 GBP
Sale Sold out
Taxes included.

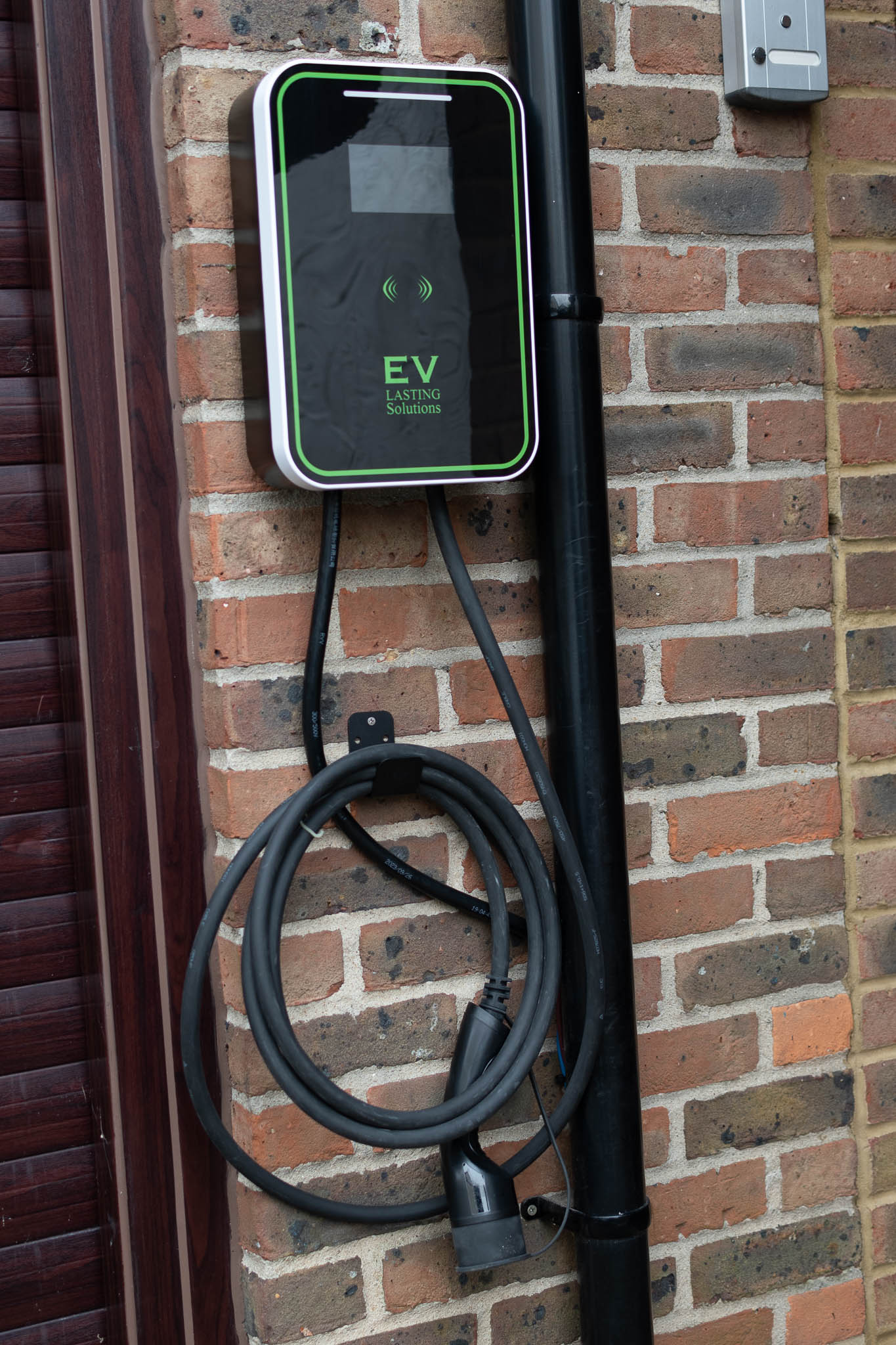

EV Lasting tethered wall charger has a fitted cable so you don't need to plug in your own. As standard it will come with a 5 metre cable for your usage.

Specification:
Level 2 Charging (Fast Charging):
Power Output: Ranges are 7KW and 22 kW.
Charging Time: Can charge an EV in 4-8 hours, making it suitable for home,
workplace, and public charging stations.
Installation: Requires a dedicated circuit and often a higher-capacity electrical
connection than Level 1.

Product Series
Charging interface:
Genesis 7 - IEC 61851、GB/T 20234、
Genesis 22 - GB/T 20234-2015

Input Voltage Range:
220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)

Output Voltage Range:
220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)

Rated output current:
Genesis 7 - 16A/32A
Genesis 22 - 16A/32A


Rated power:
Genesis 7 - 7kW/11KW/22KW
Genesis 22 - 7kW/11KW/22KW

Working Frequency:
45/65 Hz

Networking method:
Genesis 7 - NA
Genesis 22 - Optional

Control mode:
Plug and Charge
APP control / RFID card

IP grade:
≥ IP55

Working Temperature:
-40°C~ +60°C

Working Humidity:
5%-95% Non-condensing

Special Protection:
UV resistance

Working altitude:
≤ 2000m

Operating instructions:
On-screen display / Buzzer

Status indication:
On-screen display /LED breathing light

Application Scenario:
Outdoor indoor parking and charging

Weight:
Genesis 7 - <7 kg
Genesis 22 -<8 kg

Dimension:
238mmx 95mm x 348mm
View full details
Variant Variant total Quantity Price Variant total
7KWEVL007WCT001
7KWEVL007WCT001
£644.00
£399.00/ea
 £0.00
£644.00
£399.00/ea
 £0.00
11KWEVL011WCT001
11KWEVL011WCT001
£664.00/ea		 £0.00
Sold out
£664.00/ea £0.00
22KWEVL022WCT001
22KWEVL022WCT001
£688.00/ea		 £0.00
£688.00/ea £0.00
