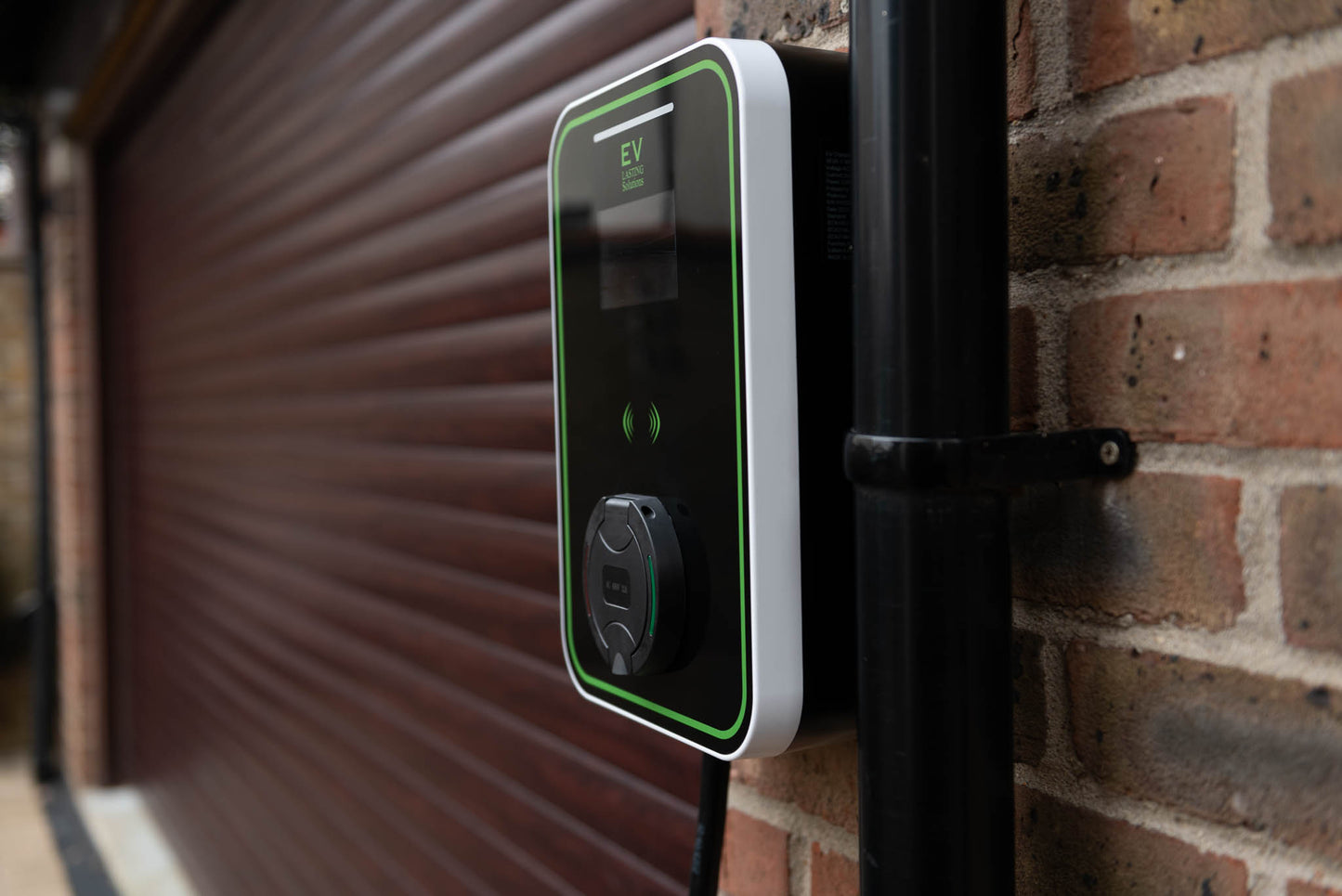

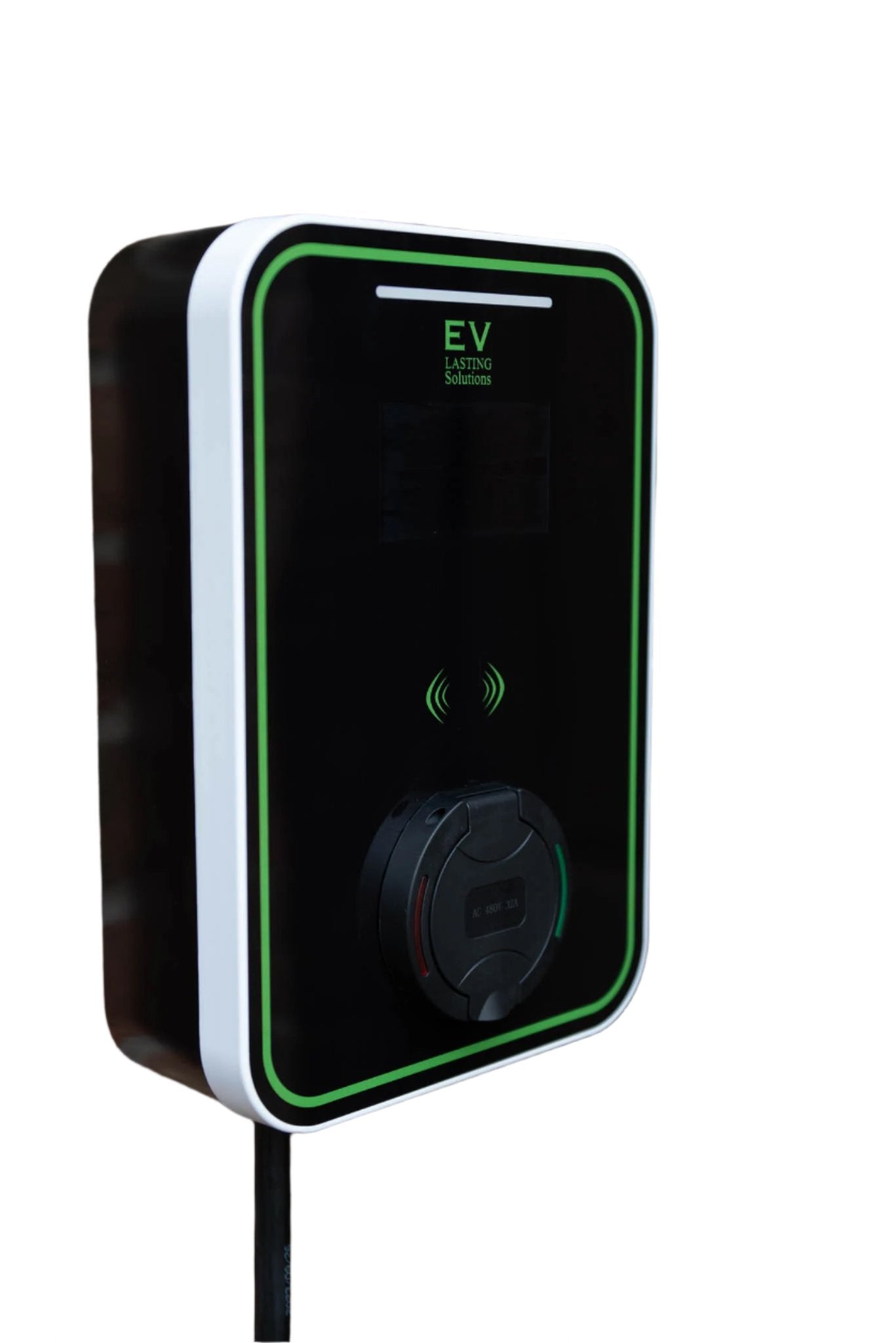

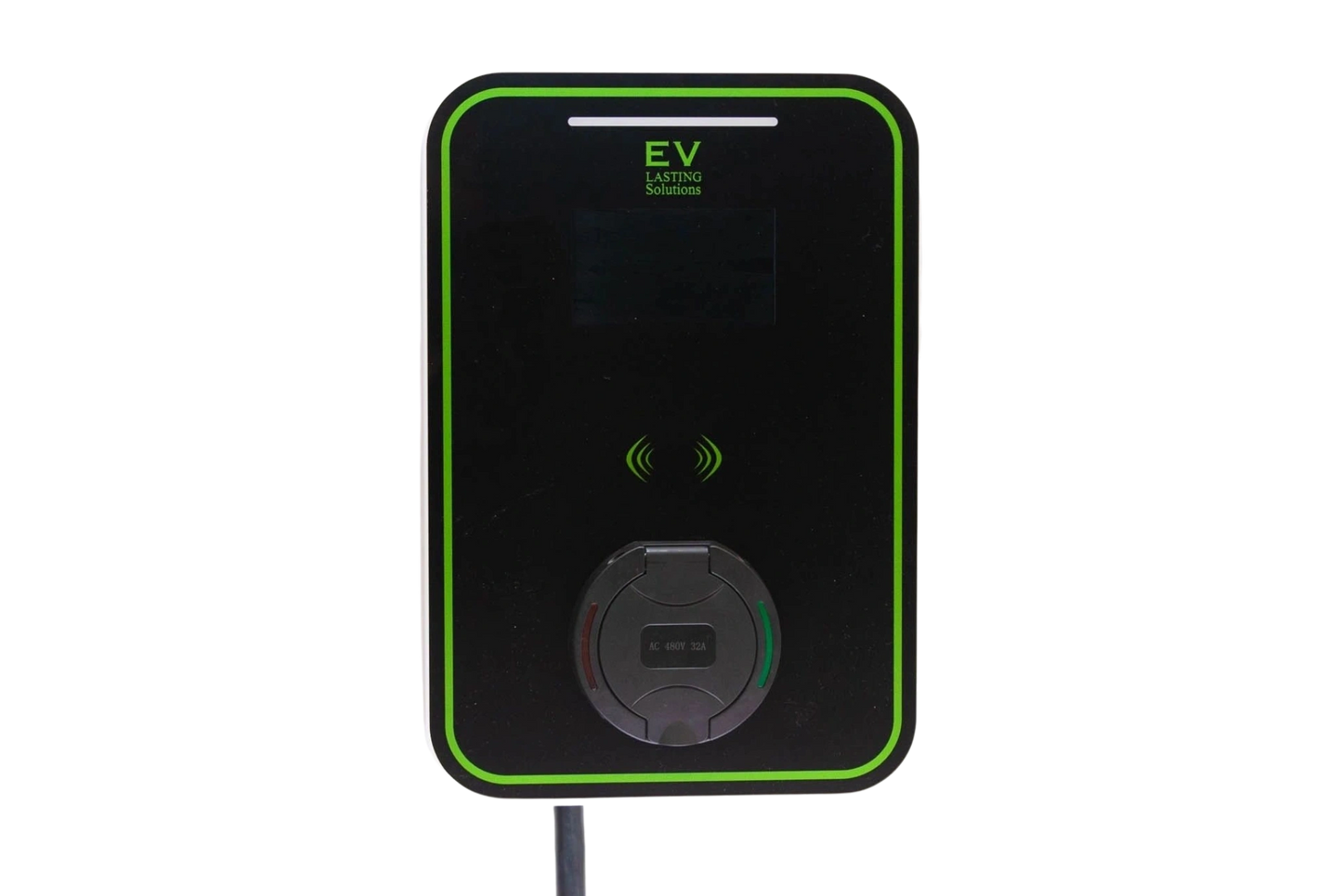

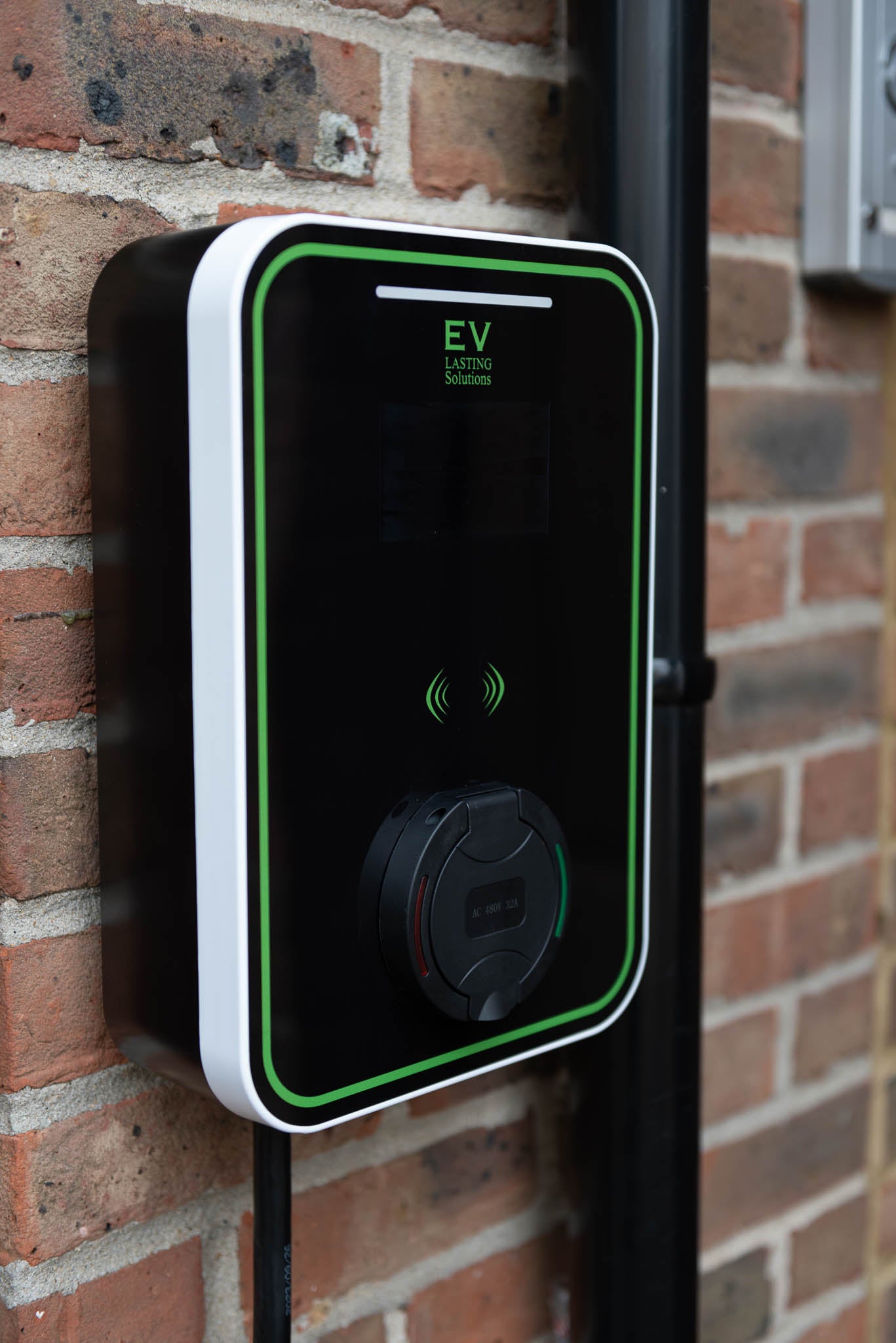

Genesis U (AC Wallbox EV Charger Socket UnTethered)

Genesis U (AC Wallbox EV Charger Socket UnTethered)

£349.00 GBP
£506.00 GBP £349.00 GBP
Sale Sold out
Taxes included.
EV Lasting untethered wall charger doesn’t have the fitted cable that tethered units have, so you’ll need to plug in your own. These types of wall boxes have an outlet for the charging cable to plug into, so you’ll need to have one available each time you charge.

Specification:
Level 2 Charging (Fast Charging):
Power Output: Ranges are 7KW and 22 kW.
Charging Time: Can charge an EV in 4-8 hours, making it suitable for home,
workplace, and public charging stations.
Installation: Requires a dedicated circuit and often a higher-capacity electrical
connection than Level 1.

Product Series
Charging interface:
Genesis 7 - IEC 61851、GB/T 20234、
Genesis 22 - GB/T 20234-2015

Input Voltage Range:
220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)

Output Voltage Range:
220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)

Rated output current:
Genesis 7 - 16A/32A
Genesis 22 - 16A/32A

Rated power:
Genesis 7 - 7kW/22KW
Genesis 22 - 7kW/22KW

Working Frequency:
45/65 Hz

Networking method:
Genesis 7 - NA
Genesis 22 - Optional

Control mode:
Plug and Charge
APP control / RFID card

IP grade:
≥ IP55

Working Temperature:
-40°C~ +60°C

Working Humidity:
5%-95% Non-condensing

Special Protection:
UV resistance

Working altitude:
≤ 2000m

Operating instructions:
On-screen display / Buzzer

Status indication:
On-screen display /LED breathing light

Application Scenario:
Outdoor indoor parking and charging

Weight:
Genesis 7 - <7 kg
Genesis 22 -<8 kg

Dimension:
238mmx 95mm x 348mm
